Ajaxdemo Component

This is an example component which you can download from com_ajaxdemo.

It demonstrates the use of Ajax within a Joomla component; for further background see the section Ajax and JsonResponse.

It can be easily adapted to demonstrate the use of com_ajax for plugins and templates; simply change the url in media/js/divide.js to point to com_ajax instead of com_ajaxdemo, and set the other required URL parameters.

Once you have downloaded the source, zip up the com_ajaxdemo directory and install the component.

Then go to <your domain>/index.php/component/ajaxdemo to run it on your Joomla instance.

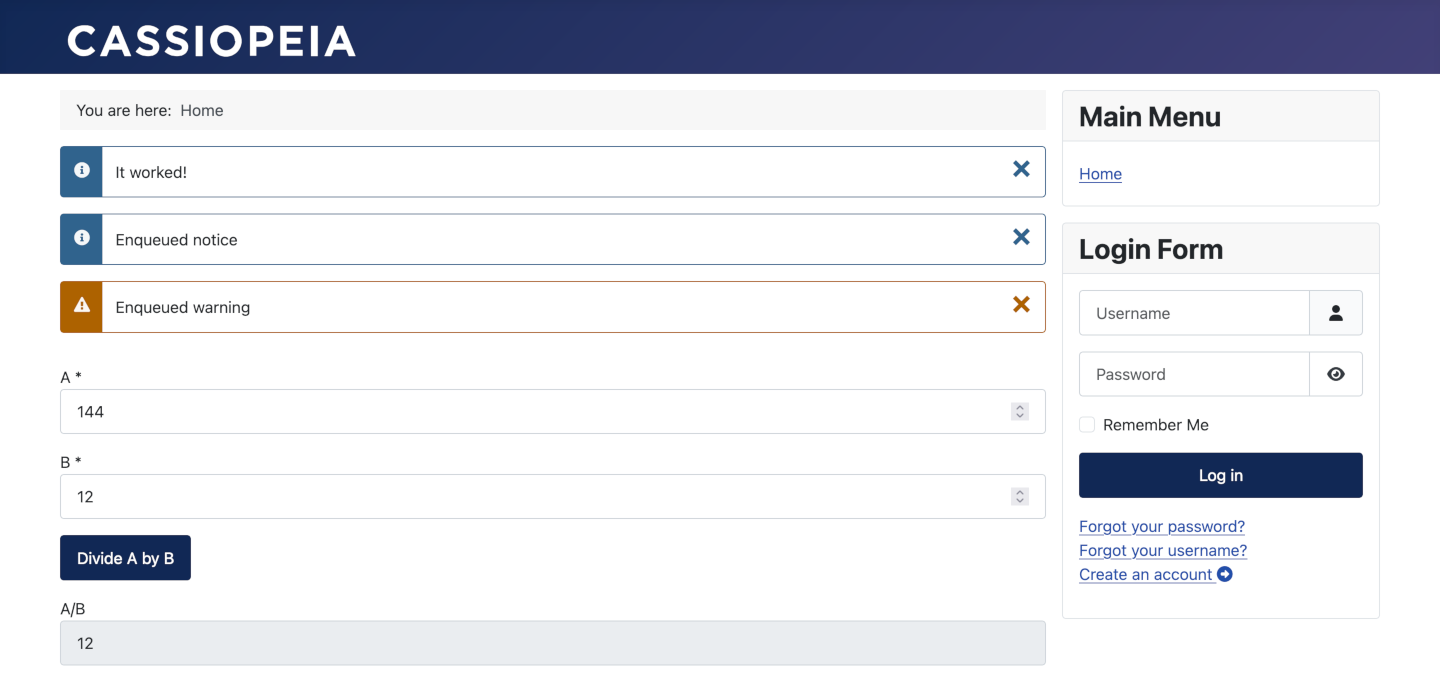

The component displays a form to capture two numbers A and B, and a button to calculate A/B. The division is performed by an Ajax call to the server, and if B is zero then an exception is raised.

Brief summaries of the main source files are provided below.

Administrator service provider

Path: administrator/components/com_ajaxdemo/services/provider.php

This is boilerplate code for a basic MVC component. For components this file is placed under /administrator in the Joomla filesystem. If you want to understand it fully then read the Dependency Injection section.

From this file Joomla instantiates default Extension and Dispatcher classes, and an MVC Factory class which creates Model, View and Controller classes for our component.

The default Dispatcher class examines the URL task parameter, and from it works out the Controller to instantiate. The default Controller (when no task parameter is present) is the DisplayController. When the Divide button is pressed the JavaScript code sends an Ajax request using task set to "ajax.divide". Based on this the default Dispatcher will instantiate this component's AjaxController and call its divide method.

Site Display Controller

Path: components/com_ajaxdemo/src/Controller/DisplayController.php

This controller's display method is what is run when you go to your site page which displays the form (ie navigate to the URL .../index.php/component/ajaxdemo).

It gets the associated Model and View classes, and calls display() on the View instance.

Site Ajaxdemo View

Path: components/com_ajaxdemo/src/View/Ajaxdemo/HtmlView.php

This calls the model to set up the form, then calls display() to run the tmpl file.

Site Ajaxdemo Model

Path: components/com_ajaxdemo/src/Model/AjaxdemoModel.php

This sets up the form as described in Forms.

Site Ajaxdemo tmpl file

Path: components/com_ajaxdemo/tmpl/ajaxdemo/default.php

This uses the Web Asset Manager to attach the JavaScript divide.js which initiates the Ajax call.

It passes the root URL of your Joomla instance to the JavaScript code using passing variables to Javascript as this makes the job of forming the URLs easier.

Then it outputs the <form> html, including the button with the onclick listener to run the divide.js code.

"Divide" XML Form

Path: components/com_ajaxdemo/forms/divide_form.xml

This uses Joomla Standard Form Fields for the fields in the form.

JavaScript code

Path: media/com_ajaxdemo/js/divide.js

The is the code which is run when the Divide button is pressed.

It initiates the Ajax call and handles the response.

Ajax Controller

Path: components/com_ajaxdemo/src/Controller/AjaxController.php

This is the controller with the divide() method which gets called when the Ajax request is serviced by Joomla.

It computes a/b and sends the result back to the JavaScript code using JsonResponse.

If b is zero then it sends a 'divide by zero' exception into JsonResponse, which gets mapped to a JSON object with success=false passed back.

It also sets up a couple of dummy enqueued messages to demonstrate this aspect of JsonResponse.

media joomla.asset.json file

Path: media/com_ajaxdemo/joomla.asset.json

This is the file required by the Web Asset Manager for defining the JavaScript asset and its dependencies.
