Step 6 Administrator List
Introduction
We now begin the development which allows administrators to manage the landmarks. In this step we provide a list of landmarks to the administrator.
The code is available at com_example step 6.
Learning Points
Defining the administrator menu
List Model
Approach

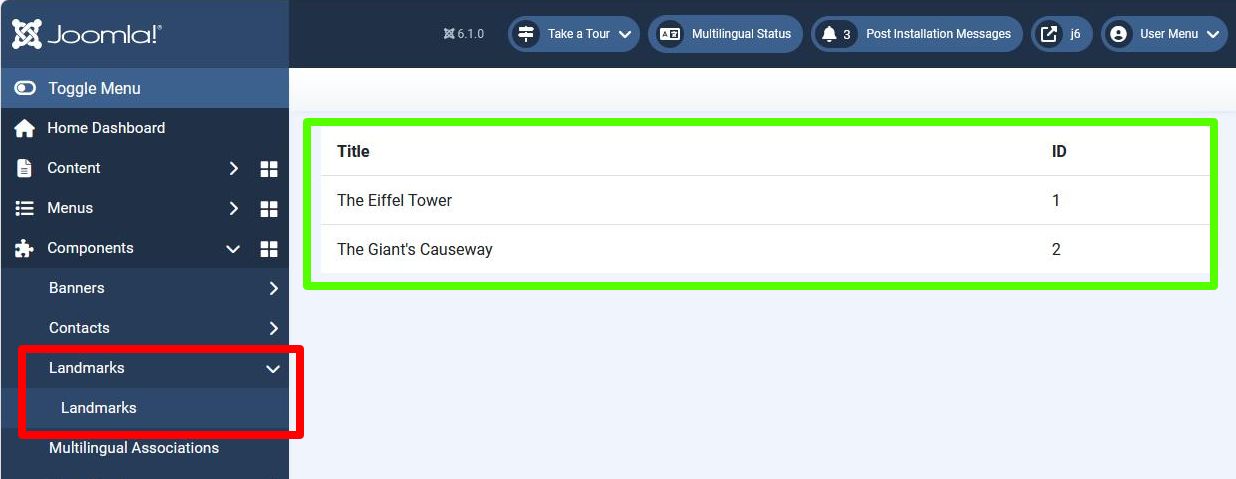

In this step we develop the 2 items highlighted in the screenshot above:
-
in the red rectangle, we'll add our menuitems into the Administrator / Components menu
-
in the green rectangle, we'll output the landmarks in an HTML table.
Defining the administrator menu
The administrator menu is defined in the manifest XML file, so we add a couple of items to the <administration> section.
(The tmpl folder which we'll also need has been added too).
Note that ampersands must be encoded as & in manifest XML files.
<administration>
<files folder="administrator/components/com_example">
<folder>services</folder>
<folder>sql</folder>
<folder>src</folder>
<folder>tmpl</folder>
</files>
<languages folder="administrator/components/com_example/language">
<language tag="en-GB">en-GB/com_example.ini</language>
<language tag="en-GB">en-GB/com_example.sys.ini</language>
</languages>
<menu link="option=com_example">COM_EXAMPLE_MENU</menu>
<submenu>
<menu link="option=com_example&view=landmarks">COM_EXAMPLE_MENU</menu>
</submenu>
</administration>
Here both menu items are given the same text: COM_EXAMPLE_MENU, but you can obviously make them different if you wish.
As these are shown on a page with display from multiple components, the language string must go into the .sys.ini file:
COM_EXAMPLE_TITLE="Joomla Component Tutorial"
COM_EXAMPLE_DESCRIPTION="Builds an example application for managing famous landmarks"
; Menu items
COM_EXAMPLE_LANDMARK_MENUITEM_TITLE="Landmark"
COM_EXAMPLE_LANDMARK_MENUITEM_DESCRIPTION="Displays a famous landmark"
; Admin menu
COM_EXAMPLE_MENU="Landmarks"
Displaying the HTML Table
As in the display of a landmark on a site page, we use an MVC approach, so we define a Controller, View, Model and tmpl file.
Note that the URL which we have to handle is defined in the <submenu> element in the manifest file above,
namely with the HTTP GET parameters option=com_example and view=landmarks.
How we handle this in the administrator code is similar to how the site front-end handled it. We write the following files:
-
DisplayController - with a display() method
-
a "Landmarks" Model - which returns the landmarks found in the database
-
a "Landmarks" View - with a display() method
-
a "landmarks" tmpl file, which outputs the HTML
Controller
As we're displaying data in response to an HTTP GET request, the Dispatcher will call the display method of a DisplayController. Note that the code includes the Administrator namespace.
<?php
namespace My\Component\Example\Administrator\Controller;
\defined('_JEXEC') or die;
use Joomla\CMS\MVC\Controller\BaseController;
class DisplayController extends BaseController {
public function display($cachable = false, $urlparams = array()) {
return parent::display($cachable, $urlparams);
}
}
Here the code just calls the parent::display which is the display method in BaseController.
The code there (including subsidiary functions) is similar to how we coded the site DisplayController:
...
$viewName = $this->input->get('view', $this->default_view); // will return "landmarks"
...
$view = $this->getView($viewName, ...) // will return Landmarks\HtmlView class instance
...
$model = $this->getModel($viewName,...) // will return LandmarksModel class
$view->setModel($model, true); // allows us to use $view->getModel() to get this Model
...
$view->display()
View
<?php
namespace My\Component\Example\Administrator\View\Landmarks;
\defined('_JEXEC') or die;
use Joomla\CMS\MVC\View\HtmlView as BaseHtmlView;
class HtmlView extends BaseHtmlView {
function display($tpl = null) {
$model = $this->getModel();
$this->items = $model->getItems();
parent::display($tpl);
}
}
Model
When returning a list of items then the base model to use is ListModel in libraries/src/MVC/Model/Listmodel.php. ListModel has a method called getItems which makes a call getListQuery back into our Model class, in order to obtain a query to apply to the database to select the required records.
The way to write a Joomla database query is described in Select Data from the Database.
Models have access to the Database object via $this->getDatabase().
<?php
namespace My\Component\Example\Administrator\Model;
\defined('_JEXEC') or die;
use Joomla\CMS\MVC\Model\ListModel;
class LandmarksModel extends ListModel
{
protected function getListQuery()
{
$db = $this->getDatabase();
$query = $db->getQuery(true);
$query->select('id, title')
->from($db->quoteName('#__example_landmarks'));
return $query;
}
}
The ListModel code uses this query to select the records from the database,
and then returns them to the View as the return value of getItems().
landmarks tmpl file
This file just outputs an HTML table with the data from the database.
<?php
\defined('_JEXEC') or die;
use Joomla\CMS\Language\Text;
?>
<table class="table">
<caption class="visually-hidden">
<?php echo Text::_('COM_EXAMPLE_LANDMARKS_CAPTION'); ?>
</caption>
<thead>
<tr>
<th scope="col">
<?php echo Text::_('JGLOBAL_TITLE'); ?>
</th>
<th scope="col">
<?php echo Text::_('JGRID_HEADING_ID'); ?>
</th>
</tr>
</thead>
<tbody><?php foreach ($this->items as $i => $item) :?>
<tr>
<th scope="row">
<?php echo $this->escape($item->title); ?>
</th>
<td>
<?php echo (int) $item->id; ?>
</td>
</tr>
<?php endforeach; ?>
</tbody>
</table>
This table has a number of features to improve accessibility, as described in the Web Accessibility Initiative Table Tutorial and in the Joomla Magazine Accessible Tables article.
- The
<caption>class="visually-hidden" means that it will not appear in the webpage display, but can be used by screen readers for people with reduced visibility. The text is a language constant which must be included in the administrator language .ini file:
COM_EXAMPLE_LANDMARK_FIELD_SELECT_TITLE="Landmark"
COM_EXAMPLE_LANDMARK_FIELD_SELECT_DESC="Select a landmark"
; Admin landmarks view
COM_EXAMPLE_LANDMARKS_CAPTION="Table of Landmarks"
- The table has column headers describing the fields,
and row headers which are the landmark titles (which will become more apparent as we add to the number of fields).
So these are identified with
<th>tags, and include the scope="col" or scope="row" attribute as appropriate.
We also reuse 2 language constants from the administrator joomla.ini file for the table column headers. This ini file always gets loaded by Joomla.
Because this tmpl file is in a new folder we need to include this folder in the manifest XML file:
<administration>
<files folder="administrator/components/com_example">
<folder>services</folder>
<folder>sql</folder>
<folder>src</folder>
<folder>tmpl</folder>
</files>
...
In the line $this->escape($item->title);, the escape function results in a call to PHP htmlspecialchars
which filters out HTML which could cause a script to be executed in the administrator back-end.
Similarly, casting the $item->id to an int ensures no dangerous HTML will be output.
Installation
Increment the version number in the manifest XML file as usual, and install the updated component.
In the administrator back-end click on Components in the left hand panel, and then on the Landmarks submenuitem.
You should see the database records displayed as shown in the screenshot above.
Challenge
In the administrator DisplayController we didn't write any custom code, and instead relied on the BaseController display method to set up the View and Model. Does the same work for the site DisplayController?
Try removing completely the display() method from the site DisplayController, and then reinstall the component. How does this affect the front-end functionality? Can you explain it satisfactorily?
